Modell / Jahr

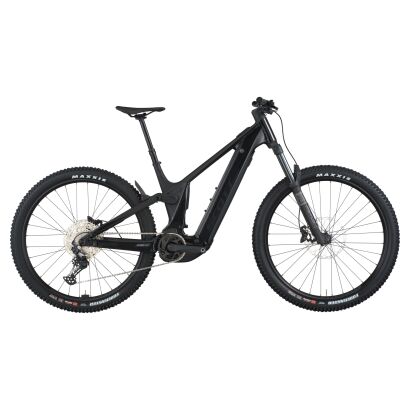

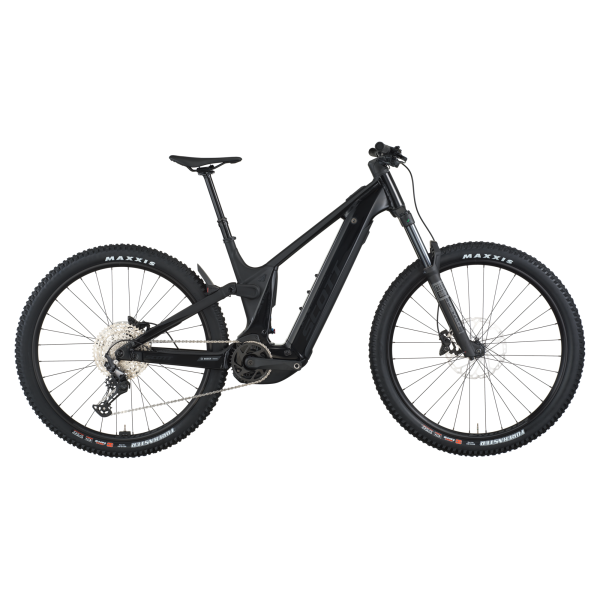

Patron 930 / 2026
Motor
Bosch Performance Line CX (BDU384Y)
Display
Bosch System Controller, Mini Remote
Rahmen
Alloy Frame, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
Gabel
RockShox Psylo Silver RC Air, E-Bike, Comp & Reb Adj., QR Axle 15x110mm axle, 44mm offset, tapered steerer, 150mm travel
Dämpfer
X-Fusion O2 Trunnion PRO RL, Lockout, Reb. Adj., T185X55mm
Lenker
Syncros Hixon 2.0 Alloy 6061, Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm
Griffe
Syncros Performance XC lock-on grips
Vorbau
Syncros AM 2.0, Syncros Cable Integration System, 4° rise, 6061 Alloy, 31.8mm, 1 1/8"
Sattelstütze
Syncros Duncan Dropper Post 2.5, 31.6mm, S size 125mm, M size 150mm, L size 170mm, XL size 200mm
Sattel
Syncros Tofino 2.5 Regular
Schalthebel
Shimano Deore SL-M6100-IR, Rapidfire Plus
Schaltwerk
Shimano Deore RD-M6100 SGS, Shadow Plus, 12 Speed
Kassette
Shimano CS-M6100, 10-51
